No.

Item

Parameter

1

Name

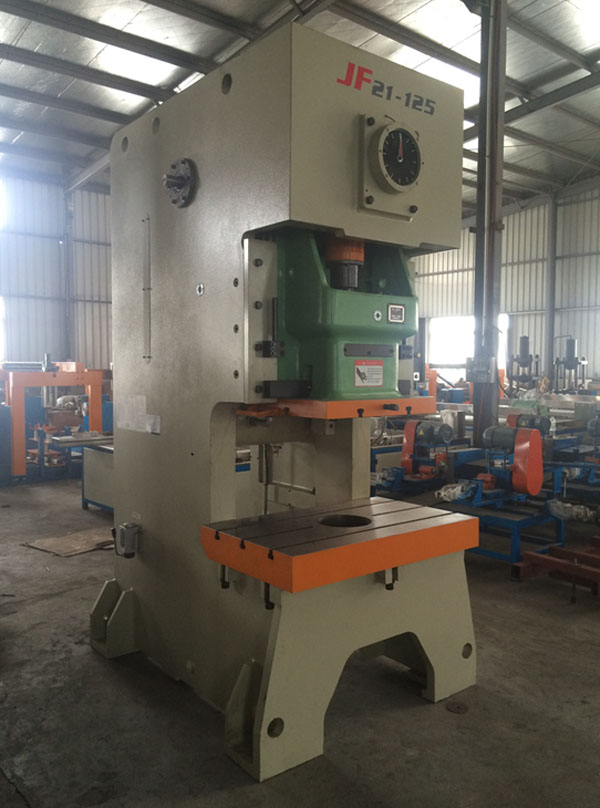

Pneumatic opening type punching machine

2

Model

JF21-160B

3

Pressing force

1600KN

4

Slider stroke

160mm

5

Stroke frequency

40times/min

6

Max.mould height

350mm

7

Adjusted mould height

110mm

8

Distance between slider middle and machine body

380mm

9

Work table size

740X1300mm

10

Work table thickness

150mm

11

Distance between pillar

850mm

12

Dimension

2230X1630X3210mm

13

Weight

14420Kg

14

Voltage

380V,3phases,50Hz

15

Main motor power

15KW

16

Installation area

1950X2500mm

Name

Model

Original

Main motor

160T,15KW

Siemens

Brake motor

YPE series

China

Dry type clutch

LZ series

China

PLC

CPM2AE-60CER-A

Omron

AC contactor

LC1 series

France TE

Button,switch,indicator

France TE

Counter

N112

China

Proximity switch

Schneider

Solenoid valve

Japan TACO

Electrical oil pump

160T

China

Manual lubricate pump

YML series

Taiwan

Pressure adjust valve

RC1/2

Taiwan
