Brief introduction

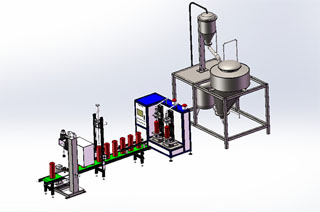

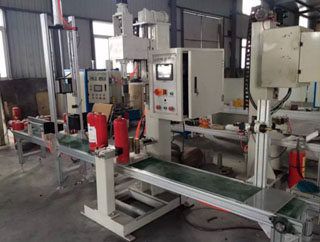

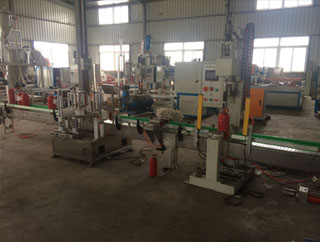

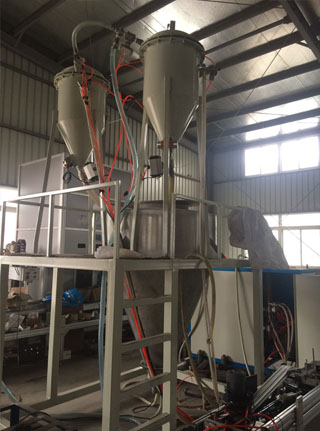

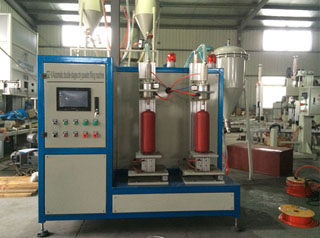

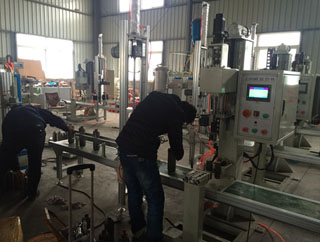

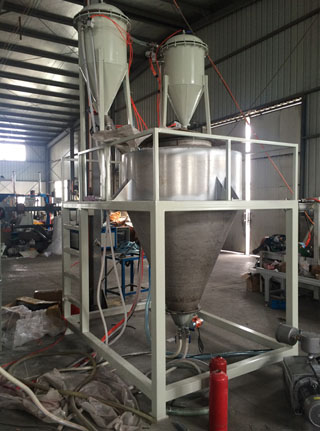

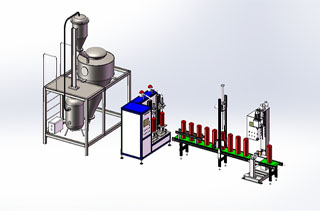

Semi-automatic dry powder fire extinguisher filling and assembling line ST-GZ-Ⅰis designed by our company for fire extinguisher factory user. It includes 1000kg dry powder tank 1set, 100kg dry powder recycling tank 2sets, Germany Becker vacuum pump or French Leybold vacuum pump, automatic double stages dry powder filling machine,automatic labeling stage, automatic hole making stage, automatic valve screwing stage, manual nitrogen filling stage and conveyor.It is equipped with PLC controlling system for easy operation,reducing labor. And this machine adopts powerful vacuum pump, the filling capacity is largely improved. Its production capacity is 360pcs/h (4kg extinguisher). It is suitable for portable dry powder extinguishers from 1kg to 12kg.
Advanced features
① Controlled by PLC, full automatic.

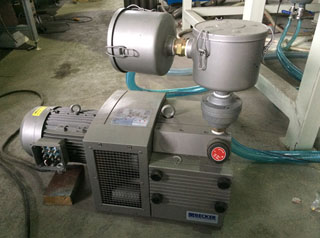

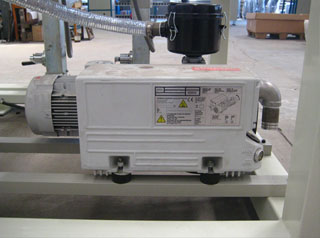

② Germany Becker pump or French Leybold pump.
③ Powder recycling function is designed.
④ Filing weight can be set and filling stop automatically.
⑤ Large production capacity.
⑥ Automatic powder filling, automatic labeling, automatic valve screwing.

Technical Data:
Model:ST-GZ-Ⅰ
Filling speed:36Kg/min
Filling precision: ±15‰
Filling type:automatic
Labeling type:automatic
Valve screwing type:automatic
Nitrogen filling type:manual with pneumatic filling tool
Filter cleaning:automatic
Voltage:380V,three phases
Total Power:7.5Kw
Weight:2600Kg
Overall size: 8000X2300X4500mm
