Automatic dry powder fire extinguisher filing and assembling line

Automatic dry powder fire extinguisher filing and assembling...

E-mail:justin@saitultd.com
Cell: +86-18932801776(whatsapp)
Tel:+86 311 68035249
Fax:+86 311 89928550

Brief introduction

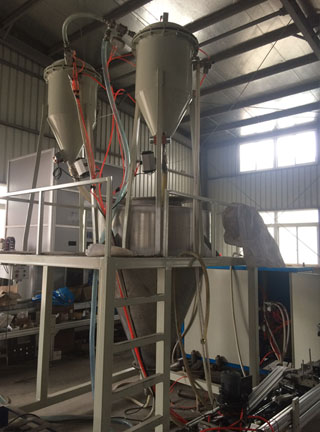

Automatic dry powder fire extinguisher filling and assembling line ST-AUTO-GZ-Ⅱis designed by our company for fire extinguisher factory user. It includes 1000kg dry powder tank 1set, 100kg dry powder recycling tank 2sets, Germany Becker vacuum pump or French Leybold vacuum pump, automatic double stages dry powder filling machine,automatic hole making stage, automatic valve screwing stage, automatic nitrogen filling stage, double level cyclic conveyor and fire extinguisher base.It is equipped with PLC controlling system for easy operation,reducing labor. And this machine adopts powerful vacuum pump, the filling capacity is largely improved. Its production capacity is 280pcs/h (4kg extinguisher). It is suitable for portable dry powder extinguishers from 1kg to 12kg.
Advanced features
①Controlled by PLC, full automatic.

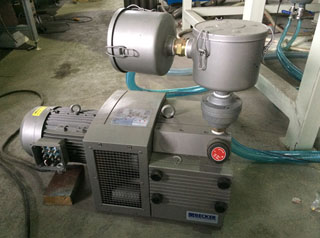

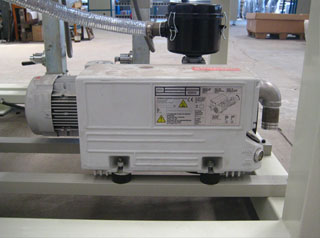

②Germany Becker pump or French Leybold pump.

③Powder recycling function is designed.

④Filing weight can be set and filling stop automatically.

⑤Large production capacity.

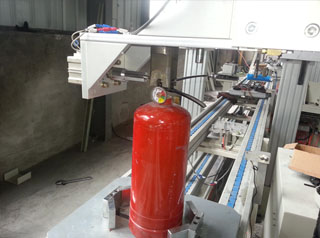

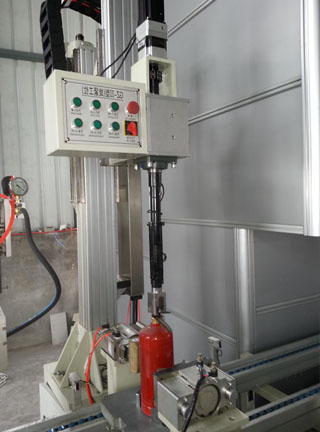

⑥Automatic powder filling, automatic valve screwing,automatic nitrogen filling.

Technical Data:
Model:ST-AUTO-GZ-Ⅱ
Filling speed:36Kg/min
Filling precision: ±15‰
Filling type:automatic
Valve screwing type:automatic

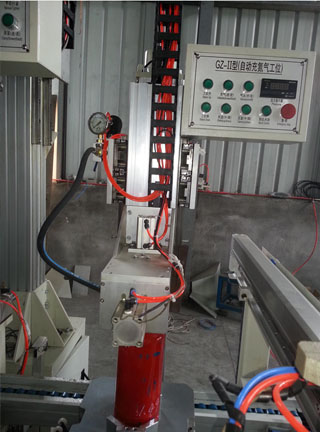

Nitrogen filling type:automatic
Filter cleaning:automatic
Voltage:380V,three phases
Total Power:7Kw
Weight:4800Kg
