Brief introduction

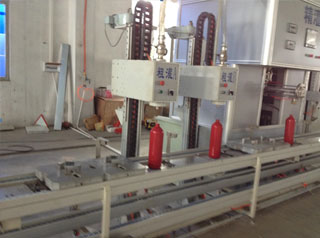

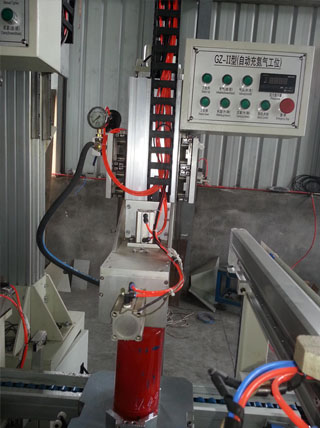

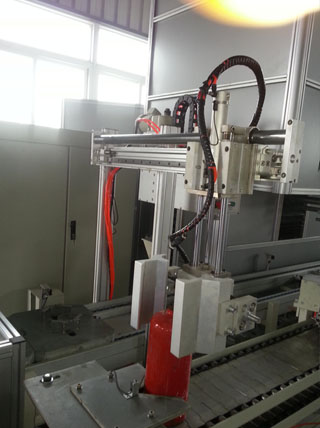

Full automatic dry powder fire extinguisher filling and assembling line ST-FULL-AUTO-GZ-Ⅲis designed by our company for fire extinguisher factory user. It is suitable for portable dry powder extinguishers from 1kg to 12kg. It includes 1000kg dry powder tank 1set, 100kg dry powder recycling tank 2sets, Germany Becker vacuum pump or French Leybold vacuum pump, automatic cylinder feeding mechanical arm,automatic cylinder weight zero clearing stage, 2 sets automatic fast filling stages, automatic precision filling stage, dust suck stage,automatic valve screwing stage,automatic overturning stage, automatic nitrogen filling stage, automatic fire extinguisher transferring mechanical arm, double level cyclic conveyor, single level conveyor and fire extinguisher base.It is equipped with PLC controlling system for easy operation,reducing labor. Only one worker needed to operate whole line. It is best choice for fire extinguisher factories.
Advanced features
① Controlled by PLC, full automatic.

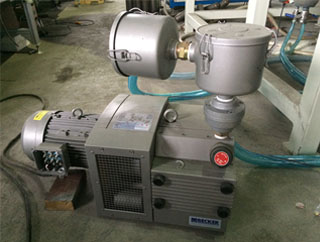

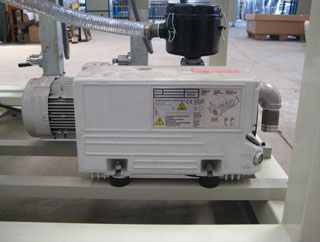

② Germany Becker pump or French Leybold pump.
③ Powder recycling function is designed.
④ Filing weight can be set and filling stop automatically.
⑤ High precision dry powder filling.

Technical Data:
Model:ST-FULL-AUTO-GZ-Ⅲ
Filling capacity:240pcs/h (4kg extinguisher)
Filling precision: ±1‰
Filling type:automatic
Controlling type:adopts PLC, full automatic
Voltage:380V,three phases
Total Power:13Kw
Weight:7600Kg
Overall size: 12000X3000X4500mm
